Shrouds for wheel loaders

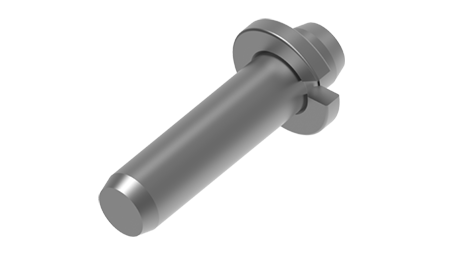

Locking pin for side shroud. 500603, 500604, 500605, 500606, 500607, 500608

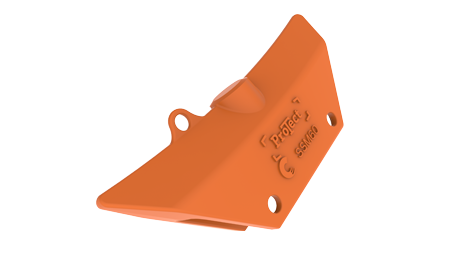

Mechanical side shroud is used to protect the bucket side plates and fastened with pin and ring.

Locking pin and ring for the side shroud. 700601, 700602, 700603

Mechanical side shroud is used to protect the bucket side plates and fastened with pin and ring.

Welded on heel shroud provides excellent wear protection of the lower outside corner of all types of buckets.

Self tightening lock, bolt and washer for the mechanical shroud.

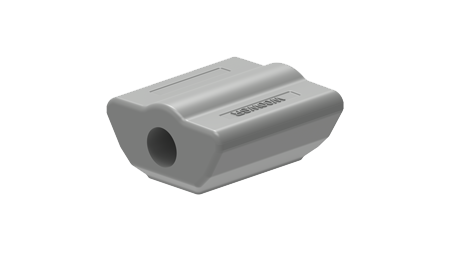

Rail to guide and secure the position of the shroud.

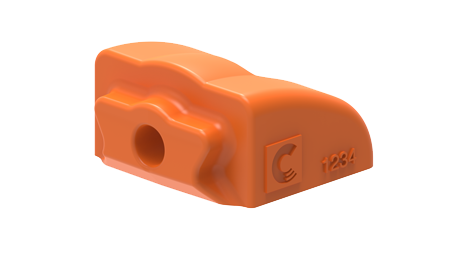

Mechanical shroud protector designed to protect the locking device and the backside of the shrouds.

15° angle, from excavating direction. For delta and spade nose buckets.

15° angle, from excavating direction. For delta and spade nose buckets.

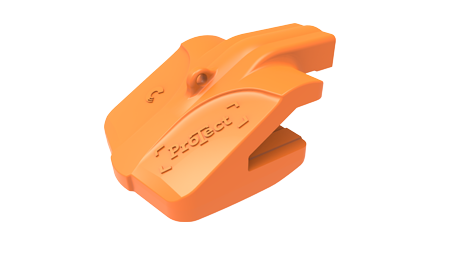

For straight edges and for use in combination with mechanical lock, rail, and bolt protector. Provides full lip protection between adapters in abrasive applications.

This shroud is bolted to a 65 mm cutting edge.
